Overview
The 7D2C1H-23V8/0 is a wafer-type vortex flowmeter from Endress+Hauser, designed for reliable and cost-effective flow measurement in industrial applications. It is ideal for direct replacement of orifice plates and other traditional flow measurement devices.
- Type: Vortex Flowmeter
- Installation: Wafer / Compact
- Pipe Size: DN100 / 4″
- Face-to-Face Length: 65 mm
- Medium: Liquids, gases, saturated steam (optional integrated temperature measurement)
Key Features
- Accurate Flow Measurement
- Provides precise flow readings for liquids, gases, and steam.
- Ideal for both mass and energy flow calculations.
- Robust Design
- Dual-compartment housing protects electronics.
- Compact wafer design allows for installation in tight spaces.
- Automatic Data Recovery
- In the event of power loss, data is automatically restored.
- Minimizes downtime and operational errors.
- Cost-Effective Solution
- Compact design reduces material costs.
- Replaces orifice plates without modifying the piping layout.
- Optional Temperature Measurement
- Integrated temperature sensor allows precise calculation of saturated steam flow.
Application Scenario
- Industry: Energy, Chemical, Water Treatment, Steam Systems
- Use Case: Measuring saturated steam flow in a heat exchanger system.
- Benefits:
- Provides reliable, maintenance-free operation.
- Reduces downtime compared to traditional mechanical flow meters.
- Compact and easy-to-install design saves space and installation cost.
Customer Outcome

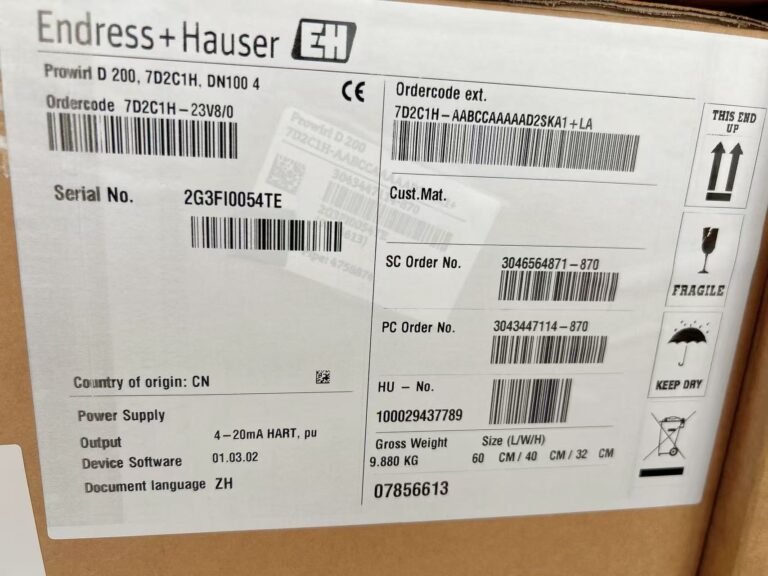

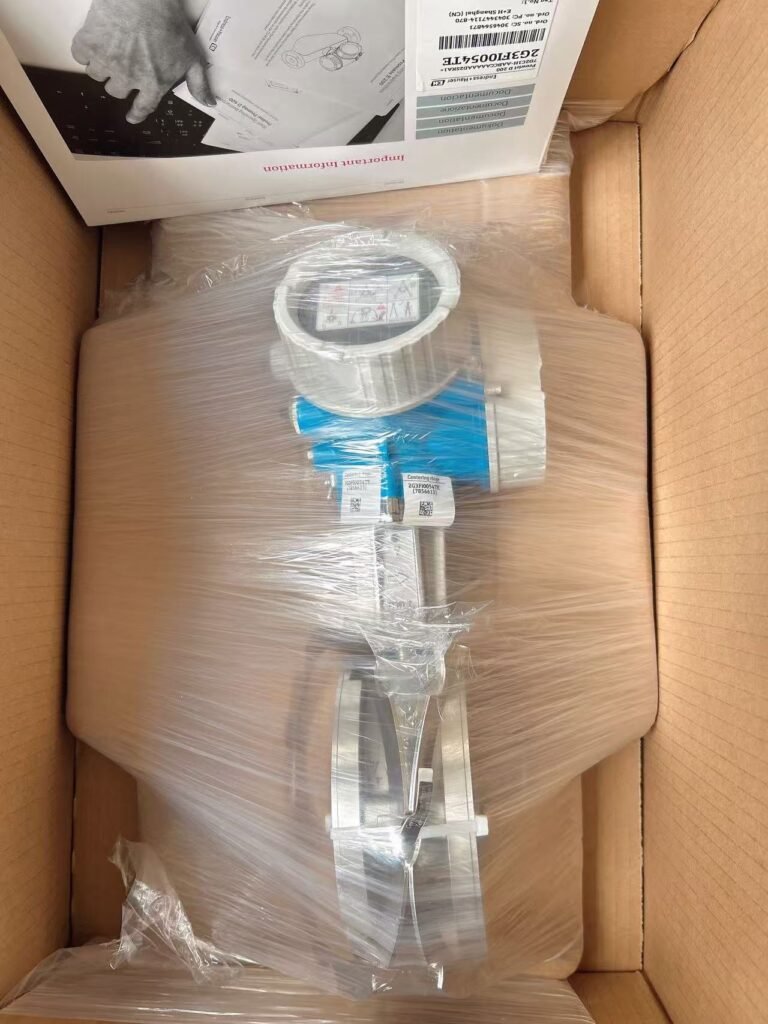

A Tanzanian industrial client recently ordered two units of 7D2C1H-23V8/0 for their steam and process flow system. The units were promptly arranged for production and shipment, ensuring minimal lead time of approximately 8 weeks. The robust design and integrated features provided confidence for precise, long-term operational performance.
